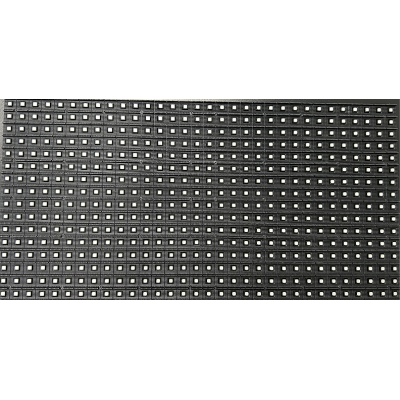

IFS-EOA10S-C
LED Module
> High refresh rate to meet a wide range of application scenarios
> Brand lamp beads, the picture consistency is high
> Flame-retardant materials offer safety and reliability
> Support point-by-point correction, uniform brightness and color
Specifications
| Model | IFS-EOA10S-C | |
| Parameters | ||
| Module Size | 320 mm (W) × 160 mm (H) | |
| Pixel Pitch | 10 mm | |
| Pixel Density | 10,000 dots/m² | |
| LED Specification | SMD 3535 | |
| Pixel Resolution | 32 dots (W) × 16 dots (H) | |
| Weight | 0.44 kg / pcs | |
| Viewing Angle | 120° (H) / 120° (V) | |
| Pixel Configuration | 1R1G1B | |
| Max. Brightness | 5000 nits | |
| Working Voltage | DC 5V | |
| Max Power Consumption | 40 W | |
| Refresh Frequency | 3840 Hz | |
| Operating Environment | Outdoor | |
| Working Temperature / Humidity | -20℃ ~ +50℃ / 10% ~ 65% RH | |
| Storage Temperature / Humidity | -20℃ ~ +60℃ / 10% ~ 65% RH | |
